Manage multi-cluster Kubernetes deployments with ArgoCD

Introduction

Managing Kubernetes deployments across multiple clusters is a common challenge for DevOps teams scaling their infrastructure. Whether you're running clusters in different regions for redundancy, separating development and production environments, or managing edge deployments, ArgoCD provides powerful multi-cluster GitOps capabilities. However, connecting ArgoCD to remote clusters typically requires complex networking setup, VPN configurations, or exposing Kubernetes API servers to the internet.

This guide shows you how to solve this problem using Tailscale's private network. You'll configure the Tailscale Kubernetes Operator to securely expose Kubernetes API servers across multiple clusters, enabling ArgoCD to manage deployments without the complexity of traditional networking approaches. By the end of this guide, you'll have a secure, scalable multi-cluster setup that eliminates the need for complex firewall rules or VPN infrastructure.

You'll accomplish this by installing the Tailscale Kubernetes Operator in each cluster, configuring secure API server proxies, and setting up ArgoCD to communicate with remote clusters through Tailscale's encrypted mesh network. This approach provides better security than exposing API servers publicly while being significantly easier to manage than traditional VPN solutions.

Prerequisites

• Multiple Kubernetes clusters (development, staging, production, or regional clusters)
• A Tailscale account with Admin access
• The Tailscale Kubernetes Operator installed in each cluster
• ArgoCD installed in your control cluster (the cluster from which you'll manage deployments)
• OAuth credentials configured for the Tailscale Kubernetes Operator

Install the Tailscale Kubernetes Operator with API server proxy

The first step is to install the Tailscale Kubernetes Operator in each cluster with API server proxy capabilities enabled. This creates a secure tunnel that lets ArgoCD communicate with remote Kubernetes API servers through Tailscale's private network.

You'll need to install the operator in each cluster you plan to manage, including the cluster where ArgoCD is running. Each installation requires a unique hostname to distinguish between clusters in your Tailscale network (known as a tailnet).

Use the following Helm command to install the Tailscale Kubernetes Operator in your first cluster:

helm upgrade --install tailscale-operator tailscale/tailscale-operator \
  --namespace=tailscale \
  --create-namespace \
  --set-string oauth.clientId=<YOUR_OAUTH_CLIENT_ID> \
  --set-string oauth.clientSecret=<YOUR_OAUTH_CLIENT_SECRET> \
  --set operatorConfig.hostname=cluster1-k8s-operator \
  --set apiServerProxyConfig.mode=true \
  --wait

The key configuration options for multi-cluster management are:

• operatorConfig.hostname: Creates a unique identifier for this cluster in your tailnet (for example, cluster1-k8s-operator, staging-k8s-operator, or prod-k8s-operator).
• apiServerProxyConfig.mode=true: Enables the Kubernetes API server proxy, enabling secure remote access to the cluster's API server.

Repeat this installation for each cluster you plan to manage, ensuring each has a unique hostname:

helm upgrade --install tailscale-operator tailscale/tailscale-operator \
  --namespace=tailscale \
  --create-namespace \
  --set-string oauth.clientId=<YOUR_OAUTH_CLIENT_ID> \
  --set-string oauth.clientSecret=<YOUR_OAUTH_CLIENT_SECRET> \
  --set operatorConfig.hostname=cluster2-k8s-operator \
  --set apiServerProxyConfig.mode=true \
  --wait

This installation creates a secure entry point for each cluster that ArgoCD can use to deploy and manage applications across your infrastructure.

Configure secure access with access control policies

After installing the Tailscale Kubernetes Operator on each cluster, you need to configure Tailscale access control policies to enable secure communication between your ArgoCD cluster and the remote Kubernetes API servers. This step ensures that only authorized components can access your clusters while maintaining the security of your infrastructure.

Without configuring access control policies through the tailnet policy file, Tailscale's default security model blocks communication between clusters, preventing ArgoCD from managing remote deployments. The recommended best practice is to use grants for access control policies. The following grants provide fine-grained control over which services can access which clusters.

Add the following grants policy to your tailnet policy file. You can update the tailnet policy file from the Access Controls page of the admin console:

{
  "grants": [
    {
      "src": ["autogroup:admin", "tag:k8s"],
      "dst": ["tag:k8s-operator"],
      "app": {
        "tailscale.com/cap/kubernetes": [
          {
            "impersonate": {
              "groups": ["system:masters"]
            }
          }
        ]
      }
    }
  ]
}

This tailnet policy file snippet provides:

• "src": Defines who can access the Kubernetes API servers. autogroup:admin lets Tailscale Admin users, while tag:k8s allows any device tagged with k8s (typically your ArgoCD cluster).
• "dst": Specifies which operators the source (src) can access (your API server proxies).
• "impersonate": Grants administrative access to the Kubernetes clusters, enabling ArgoCD to deploy applications and manage resources.

The system:masters group provides full administrative access to the Kubernetes clusters, which ArgoCD needs to manage deployments, create namespaces, and perform other administrative tasks.

Set up DNS resolution for MagicDNS

To enable your ArgoCD cluster to resolve Tailscale hostnames (such as cluster1-k8s-operator.tailnet.ts.net), you need to configure DNS resolution for MagicDNS.

Create a DNS configuration resource in your ArgoCD cluster:

apiVersion: tailscale.com/v1alpha1
kind: DNSConfig
metadata:
  name: ts-dns
spec:
  nameserver:
    image:
      repo: tailscale/k8s-nameserver
      tag: unstable

Apply this configuration to your cluster using the kubectl command line tool:

kubectl apply -f dns-config.yaml

Get the IP address of the Tailscale nameserver. This stub DNS resolver is automatically deployed by the Tailscale Kubernetes Operator and provides DNS resolution for .ts.net domains within your cluster:

kubectl get dnsconfig ts-dns -o jsonpath='{.status.nameserverStatus.ip}'

Make a note of the IP address returned (for example, 100.64.0.4 or 10.100.124.196). You'll use this IP address to configure CoreDNS.

Update your CoreDNS configuration to forward Tailscale DNS queries to the Tailscale nameserver:

kubectl edit configmap coredns -n kube-system

Add the following block to the Corefile section, replacing <TAILSCALE_NAMESERVER_IP> with the IP address you noted:

ts.net:53 {
    errors
    cache 30
    forward . <TAILSCALE_NAMESERVER_IP>
}

This configuration ensures that your ArgoCD cluster can resolve Tailscale hostnames and establish secure connections to remote clusters.

Create egress services for remote clusters

In your ArgoCD cluster, you need to create Kubernetes services that point to the Tailscale hostnames of your remote clusters. These services act as connection points that ArgoCD can use to communicate with remote Kubernetes API servers.

These egress services use Tailscale's service discovery capabilities to route traffic to the correct cluster through the tailnet automatically.

Create a service for each remote cluster you plan to manage. Here's an example for two clusters:

apiVersion: v1
kind: Service
metadata:
  name: cluster1-k8s-operator
  annotations:
    tailscale.com/tailnet-fqdn: cluster1-k8s-operator.<YOUR_TAILNET_NAME>.ts.net
spec:
  externalName: placeholder
  type: ExternalName
  ports:
  - name: https
    port: 443
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: cluster2-k8s-operator
  annotations:
    tailscale.com/tailnet-fqdn: cluster2-k8s-operator.<YOUR_TAILNET_NAME>.ts.net
spec:
  externalName: placeholder
  type: ExternalName
  ports:
  - name: https
    port: 443
    protocol: TCP

Replace <YOUR_TAILNET_NAME> with your actual tailnet name. For example, if your tailnet is example.com, the fully qualified domain name (FQDN) would be cluster1-k8s-operator.example.com.ts.net.

Apply these services to your ArgoCD cluster:

kubectl apply -f cluster-services.yaml

The Tailscale Kubernetes Operator automatically updates these services to point to the correct IP addresses of your remote clusters, enabling seamless communication through your tailnet.

Generate kubeconfig for remote clusters

ArgoCD needs kubeconfig files to authenticate with remote clusters. The Tailscale CLI provides a way to generate these configurations using the Tailscale hostnames you've set up.

Generate kubeconfig entries for each remote cluster:

tailscale configure kubeconfig cluster1-k8s-operator.<YOUR_TAILNET_NAME>.ts.net

tailscale configure kubeconfig cluster2-k8s-operator.<YOUR_TAILNET_NAME>.ts.net

These commands add cluster configurations to your local kubeconfig file, enabling kubectl and ArgoCD to authenticate with remote clusters through Tailscale's secure network.

The generated kubeconfig entries include the necessary certificates and authentication tokens that ArgoCD needs to manage deployments across clusters.

Add clusters to ArgoCD

The final step is to register your remote clusters with ArgoCD so it can begin managing deployments across your infrastructure. ArgoCD uses the kubeconfig entries you generated to establish secure connections to each cluster.

Add each remote cluster to ArgoCD:

argocd cluster add cluster1-k8s-operator.<YOUR_TAILNET_NAME>.ts.net --grpc-web

argocd cluster add cluster2-k8s-operator.<YOUR_TAILNET_NAME>.ts.net --grpc-web

The --grpc-web flag ensures compatibility with ArgoCD's web interface and API server communication over the secure Tailscale network.

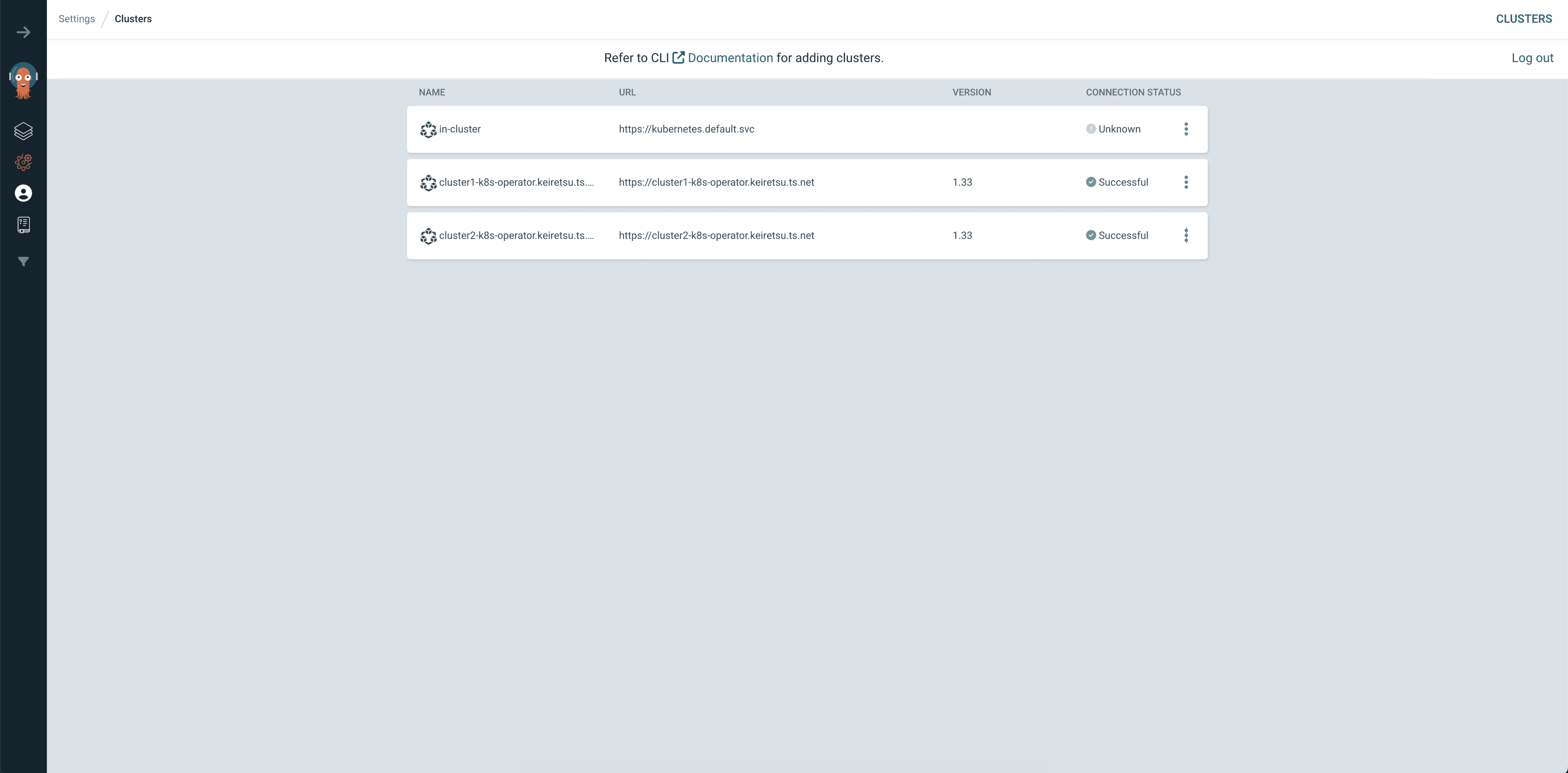

Verify that your clusters are successfully registered:

argocd cluster list

You should notice all your clusters listed with their Tailscale hostnames and connection status. ArgoCD can now deploy applications to any of these clusters using GitOps workflows.

Conclusion

You've successfully configured a secure multi-cluster Kubernetes environment with ArgoCD using Tailscale's private network. Your setup now enables centralized GitOps management across multiple clusters without the complexity of traditional networking approaches.

This configuration provides several key benefits:

• Enhanced security: Kubernetes API servers are not exposed to the internet, reducing attack surface.
• Simplified networking: No need for complex VPN configurations or firewall rules.
• Scalable architecture: Easy to add new clusters by installing the operator with a unique hostname.
• Unified management: ArgoCD can deploy applications across all clusters from a single control plane.

You can now create ArgoCD applications that target different clusters based on your deployment strategy. For example, you might deploy development applications to your development cluster and production applications to your production cluster, all managed through GitOps workflows.

For advanced configurations, explore customizing the Tailscale Kubernetes Operator to fine-tune security policies or troubleshooting common issues if you encounter connectivity problems.
